Bullhead Design Drum Cutters

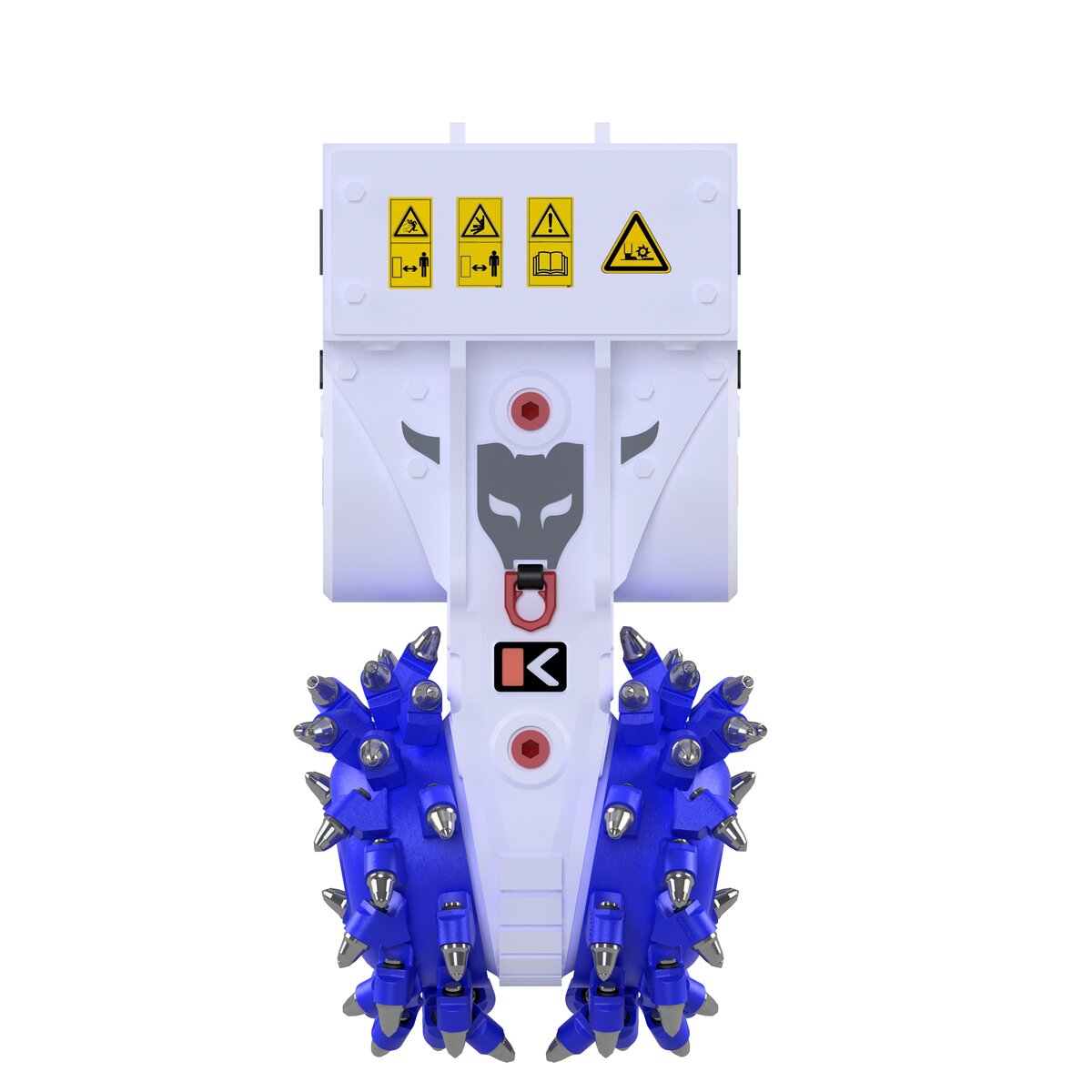

KRC 60 Bullhead Design Drum Cutter

The Kemroc KRC 60 Bullhead Design Drum Cutter offers precise and efficient cutting for a wide range of excavation tasks.

The KRC Range of bullhead cutters have two cutter drums arranged at an angle to one another so that the two sets of picks provide full face coverage without any gap between them, eliminating the need to swing the cutter from side to side. Operating the cutter without sideways movement creates a trench with the same width as the cutter Attachment.

Compared to the EK range of chain cutters, which also have full-face coverage thanks to the central cutter chain, the KRC range of bullhead cutters are easier to maintain. However, due to their design, they cannot achieve the extreme narrow trenching widths of the EK chain cutters.

  • Recommended excavator weight
    20 – 40 t
  • Rated power
    140 kW
  • Drum cutter length (A)
    1.520 mm
  • Cutter head width (B)
    880 mm
  • Cutter drum diameter (C)
    700 mm
  • Max. torque at 380 bar
    25.400 Nm
  • Max. cutting force at 380 bar
    72.600 N
  • Recommended rotation speed
    65 rpm
  • Recommended oil flow
    250 – 320 l/min
  • Max. oil flow at 10 bar
    380 l/min
  • Max. operating hydraulic pressure
    400 bar
  • Max. uniaxial compressive strength
    100 MPa
  • Weight
    1.950 kg
  • Pick box
    PH 32 HD Type
  • Number of picks
    52 Pcs
  • Standard pick
    ER 17/75/70/30 Q

See it in Action
