KDS Diamond Cutter Wheels
- High rotation speed up to 2,000 rpm
- Drive motors with heavy-duty bearings
- Effective cooling of saw blades
- Lateral pull-out protective covers for all saw blade diameters
Applications
ROTATION UNITS WITH ENDLESS ROTATION
THE DIAMOND SAWS IN THE KDS SERIES HAVE BEEN DESIGNED FOR CUTTING CONCRETE, REINFORCED CONCRETE, STONE AND GLASS FIBER REINFORCED PLASTICS SUCH AS WIND TURBINE BLADES. THE HIGH SPEEDS AND A LARGE SELECTION OF DIFFERENT SAW BLADES ALLOW A WIDE RANGE OF APPLICATIONS AND GREAT EFFICIENCY.
Saw blades for:
+ Natural stone, granite, reinforced concrete and concrete
+ Asphalt and plastics (e.g. wind turbines)
+ Wood, plastics, foils and aluminum
COMPARE MODELS
Recommended Excavator Weight: 11,000 – 22,000 lb
Rated power: 107 hp (80 kW)

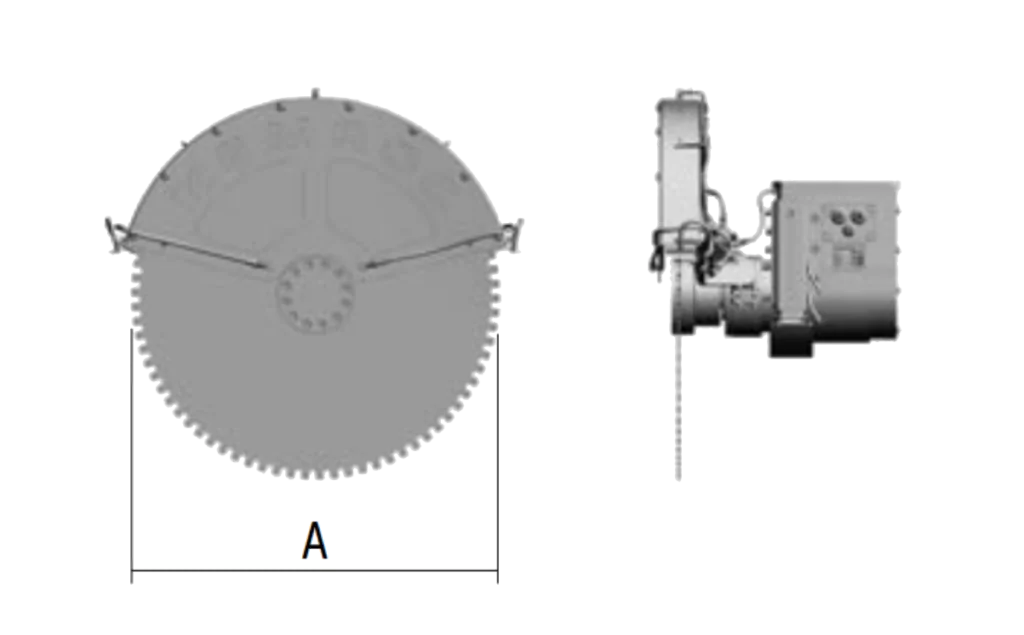

Max. saw blade diameter (A): 47 in
Max. torque at 350 bar: 230 lbf·ft
Weight of drive unit excl. saw blade and protective cover: 465 lb
Recommended Excavator Weight: 33,000 – 55,000 lb
Rated power: 174 hp (130 kW)
Max. saw blade diameter (A): 59 in
Max. torque at 350 bar: 445 lbf·ft
Weight of drive unit excl. saw blade and protective cover: 685 lb
Recommended Excavator Weight: 33,000 – 55,000 lb
Rated power: 181 hp (135 kW)
Max. saw blade diameter (A): 59 in
Max. torque at 350 bar: 535 lbf·ft
Weight of drive unit excl. saw blade and protective cover: 1,590 lb
Recommended Excavator Weight: 40,000 – 66,000 lb
Rated power: 208 hp (230 kW)
Max. saw blade diameter (A): 71 in
Max. torque at 350 bar: 1,130 lbf·ft
Weight of drive unit excl. saw blade and protective cover: 1,875 lb
