Diamond Cutter Wheels
KDS 40 Diamond Cutter Wheel

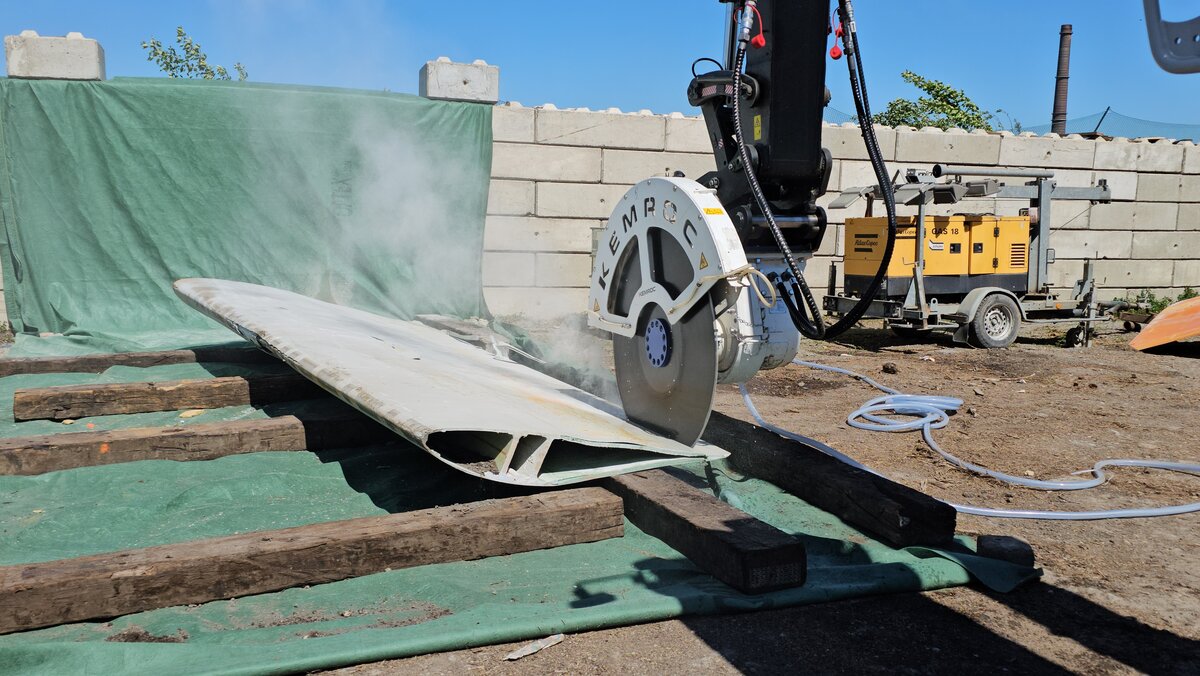

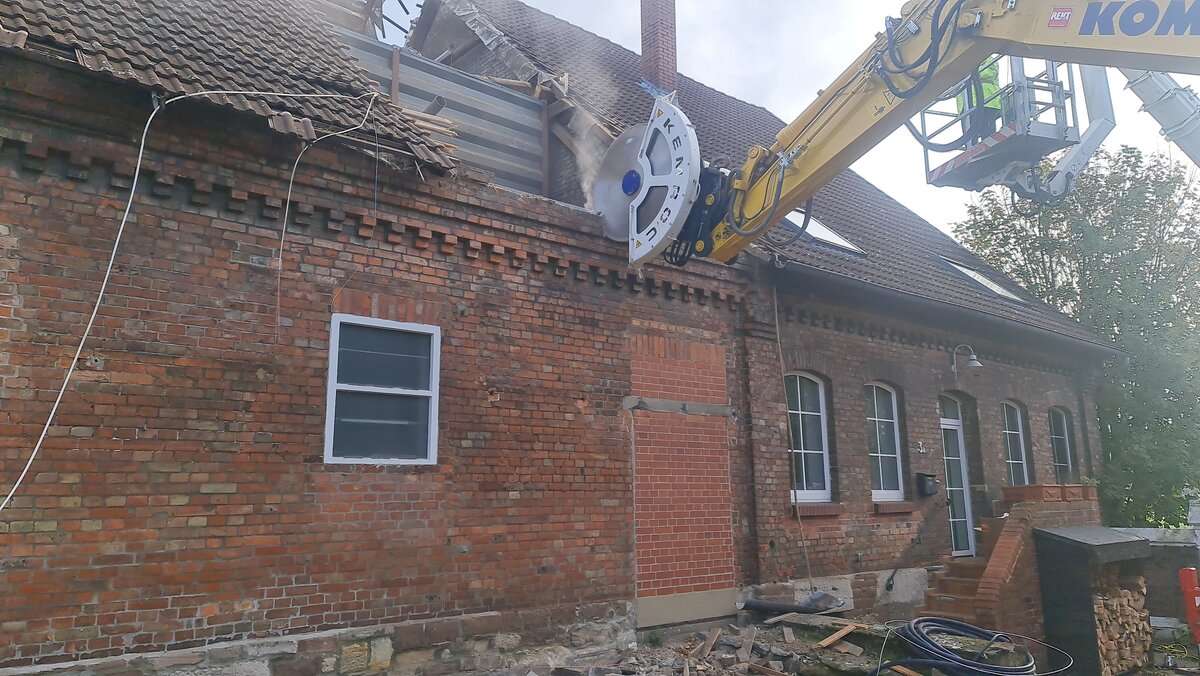

The Kemroc KDS 40 Diamond Cutter Wheel offers exceptional precision and efficiency for diverse excavation cutting needs.
Rotation units in the KRM range have been developed for use with KEMROC milling attachments. In combination with rotation units, milling attachments can always be placed in the correct position while facing in the right direction. As a result, in most cases work is completed faster and with more accuracy.
When used with EX patch planers, it is possible to mill longitudinally in front of the excavator as well as 90° across the excavator without having to move the excavator. You can even work to the side of the excavator. DMW, EK or KTR attachments working in combination with KRM rotation units can also benefit from this flexibility of working position. Horizontal slots can be cut easily using a KDS attachment together with a KRM rotation unit.
Depending on the application, productivity can be increased by up to 50 percent when using KRM rotation units – especially in sewer and pipeline construction, profiling and tunnelling.
-
Recommended excavator weight22,000 – 35,000 lb
-
Rated power174 hp (130 kW)
-
Max. saw blade diameter (A)59 in
-
Max. torque at 350 bar445 lbf·ft
-
Max. rotation speed2,000 rpm
-
Max. oil flow47 gal/min
-
Max. operating hydraulic pressure5,000 psi (350 bar)
-
Weight of drive unit excl. saw blade and protective cover685 lb
