Rotary Drum Cutters

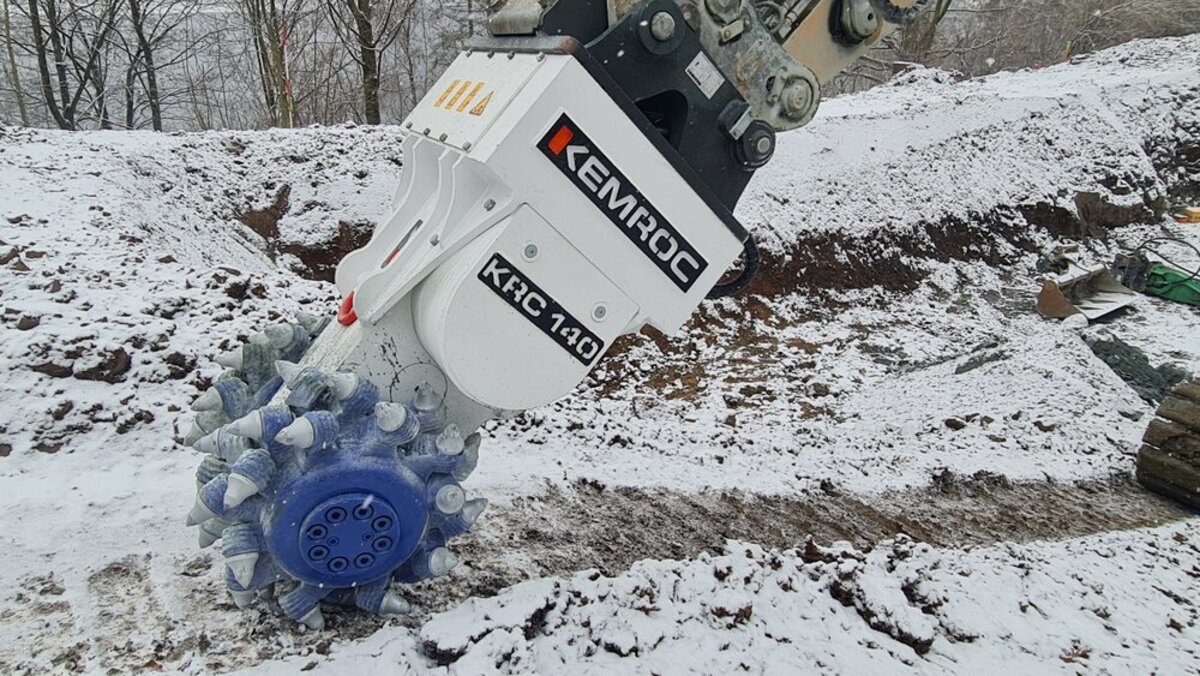

EKT 140 Rotary Drum Cutter

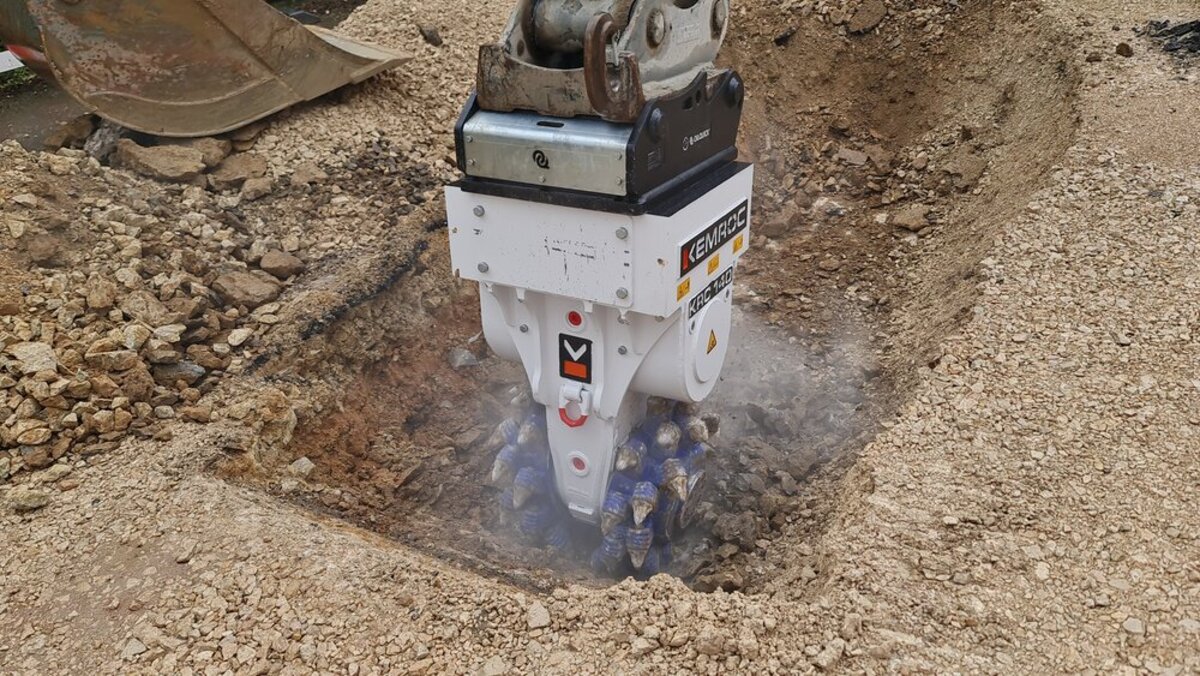

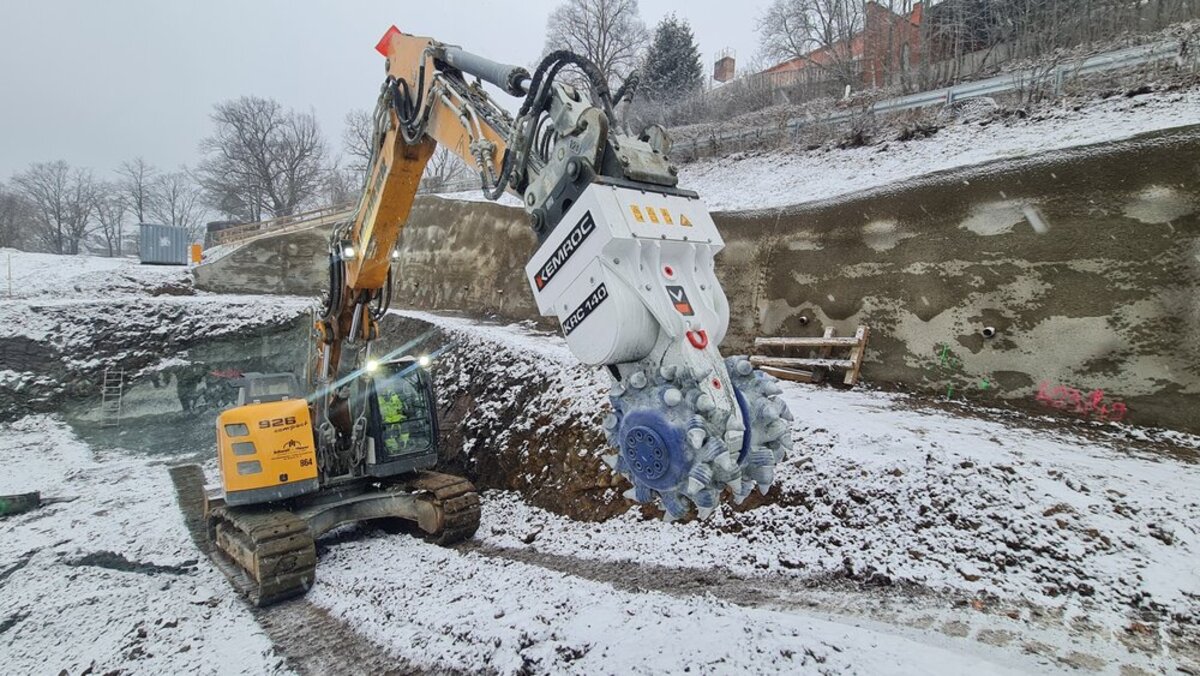

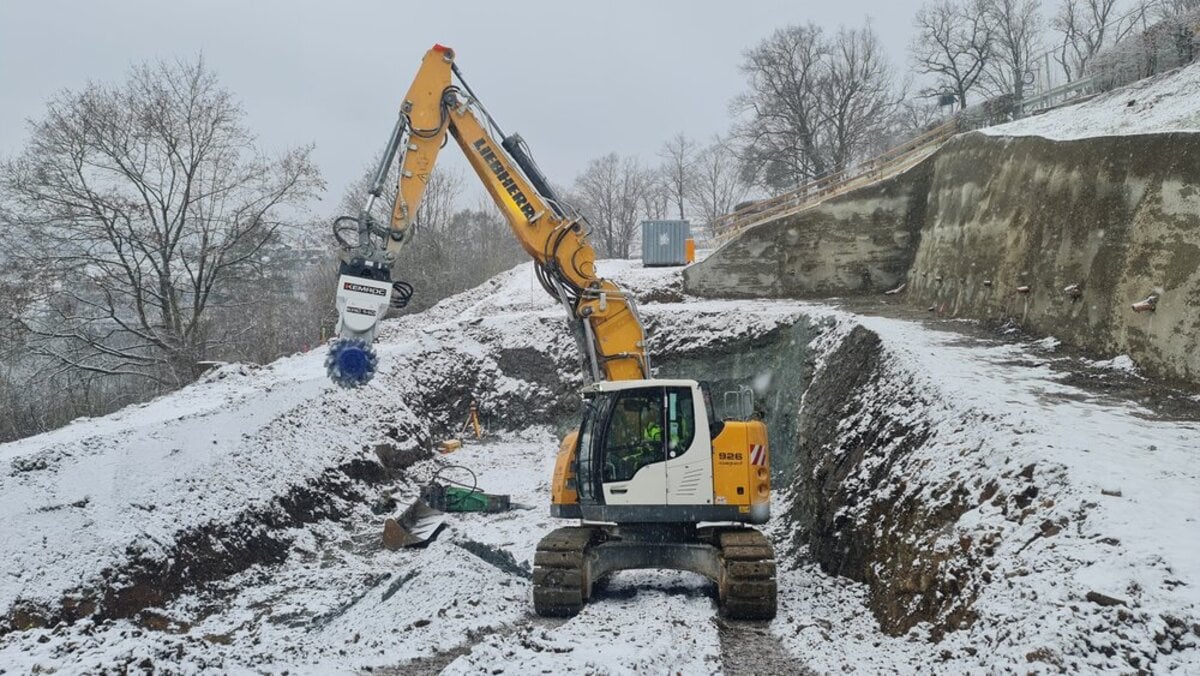

The Kemroc EKT 140 Rotary Drum Cutter offers efficient and precise cutting for demanding excavation tasks.
KR Range: In addition to standard EK and the convertible EKT range, traditional style rotary drum cutters are now also available from KEMROC. They are designated as the new KR range of drum cutters. Designed to be incredibly robust, these attachments are ideal for use on short arm excavators working in confined spaces, especially in tunnelling and also for the vibration free and silent demolition of re-enforced concrete structures.
KRD Range: The new KRD range of direct drive drum cutters can be described as compact, lightweight but strong. Lighter and shorter, these attachments are ideal for use on long-arm excavators for demolition and shaft sinking applications. They can also be used for soil stabilisation and concrete renovation applications. Intentionally oversized bearings have been used to support the cutter drums for a long operating life.
EKT Range: The patented EK range of chain cutters are one of our core products and continues to be recommended as an ideal tool for trenching contractors. This concept is being expanded with the addition of the new EKT range of traditional style drum cutters. These lower priced models are supplied as rotary drum cutters without a central cutting chain, but conversion kits are available so that cutter chains can be fitted later.
-
Recommended excavator weight44,000 – 71,000 lb
-
Rated power148 hp (110 kW)
-
Drum cutter length (A)55 in
-
Cutter head width (B)32 in
-
Cutter drum diameter (C)26 in
-
Max. torque at 380 bar14,750 lbf·ft
-
Max. cutting force at 380 bar13,830 lbf
-
Recommended rotation speed70 rpm
-
Recommended oil flow55 – 69 gal/min
-
Max. oil flow at 10 bar79 gal/min
-
Max. operating hydraulic pressure5,800 psi (400 bar)
-
Max. uniaxial compressive strength12,000 psi (80 MPa)
-
Weight3,200 lb
-
Pick boxPH 32 HD Type
-
Number of picks52 Pcs
-
Standard pickER 17/75/70/30 Q
