Understanding the technical specifications of KEMROC chain cutters helps explain why they deliver such impressive results in the field. The EK series represents the cutting edge of rock excavation technology, with engineering features specifically designed to overcome the limitations of traditional methods.
EK Series Overview
The KEMROC EK series chain cutters are specialized attachments designed for excavators that enable precise, narrow trenching in rock. Their unique design features a central cutting chain positioned between two cutter drums, allowing for trenches with minimal width—a capability that sets them apart from other mechanical cutting methods.
Rock Hard Solutions offers several models in the EK series, each optimized for different excavator sizes and application requirements:
| Model | Excavator Weight Range | Power Rating | Max Cutting Depth | Trench Width |
|---|---|---|---|---|
| EK 100 | 18,000-28,000 lbs | 80 kW (107 hp) | 39 inches | 4-12 inches |
| EK 140 | 25,000-35,000 lbs | 140 kW (188 hp) | 59 inches | 5-14 inches |
| EK 150 | 55,000-88,000 lbs | 150 kW (201 hp) | 71 inches | 6-14 inches |
| EK 160 | 77,000-110,000 lbs | 160 kW (215 hp) | 79 inches | 6-14 inches |
“The range of models ensures we can match the right cutter to each contractor’s equipment and project requirements,” explains Scott Thornberry of Rock Hard Solutions. “This versatility is crucial for optimizing performance across different applications.”
Key Technical Features
The exceptional performance of the EK series comes from several innovative design features:
Central Cutting Chain
The patented central cutting chain is the defining feature of the EK series:
- Design: Specially engineered chain with carbide-tipped cutting tools
- Function: Creates narrow slot between the two cutter drums
- Advantage: Enables trenching with minimal width without side to side motion required with a drum cutter.
- Durability: Hardened steel construction for extended service life in abrasive conditions
Carbide Cutting Tools
The quality and configuration of the cutting tools significantly impact performance:
- Material: Tungsten carbide tips for maximum durability
- Design: Optimized geometry for efficient rock fracturing
- Replacement: Individual pick replacement without special tools
- Rotation: Self-rotating design for even wear and extended life
- Customization: Different pick types available for various rock conditions
Hydraulic Drive System
The powerful hydraulic system delivers consistent performance:
- High Torque: Optimized for maintaining cutting force under load
- Pressure Relief: Integrated system prevents damage from overloading
- Flow Requirements: Matched to carrier capabilities for optimal performance
Structural Components
The robust construction ensures reliability in demanding conditions:
- Frame: Heavy-duty welded steel construction
- Bearings: Oversized bearings for extended service life
- Seals: Advanced sealing system to protect internal components
- Mounting: Universal mounting bracket compatible with various excavator models
- Protection: Integrated guards for vulnerable components
Performance Metrics
The technical specifications translate to impressive real-world performance:
Trench Specifications
The EK series excels at creating precise trenches:
- Width Control: Minimal width starting at around 15 inches (model dependent)
- Wall Quality: Smooth, vertical walls requiring no additional finishing
- Floor Evenness: Consistent, flat trench bottom ideal for utility installation
Material Production
The quality of excavated material is a significant advantage:
- Size Consistency: Typically creates a six” minus material. The harder the rock, the finer the spoil.
- Gradation: Well-graded material ideal for compaction
- Reuse Rate: Typically 90-95% of cut material suitable for direct reuse
- Dust Generation: Significantly less than blasting or breakers
- Material Handling: No secondary crushing required for most applications
Compatibility and Requirements
To achieve optimal performance, KEMROC chain cutters have specific carrier requirements:
Excavator Specifications
- Weight Class: Must match the recommended range for each model
- Hydraulic Flow: Sufficient GPM to power the cutter (model specific)
- Hydraulic Pressure: Minimum 4,500 PSI for optimal performance
- Auxiliary Hydraulics: Dedicated circuit with appropriate flow and pressure
- Boom Configuration: Standard boom and stick arrangement
Operational Requirements
- Operator Skill: Basic excavator experience with brief additional training
- Maintenance: Daily pick inspection and routine hydraulic maintenance
- Support Equipment: Standard excavator maintenance tools plus pick changing tools
- Consumables: Replacement picks based on rock abrasiveness and usage
- Water Supply: Optional water spray system for dust suppression
Comparative Advantage
When compared to other rock excavation methods, the technical specifications of the EK series translate to several distinct advantages:
Vs. Hydraulic Breakers
- Production Rate: 3-5 times faster in most rock conditions
- Precision: Significantly better dimensional control
- Material Quality: Consistent sizing vs. irregular fragments
- Vibration: 70-80% less vibration transfer to carrier
- Noise Level: 15-20 decibels quieter during operation
Vs. Standard Drum Cutters
- Trench Width: Can create narrower trenches with less material removal
- Efficiency: Less power required for equivalent production
- Application Range: More versatile across different rock types
- Material Handling: Better removal of cut material from the trench
Vs. Traditional Trenchers
- Depth Flexibility: Variable depth without changing components
- Carrier Integration: Uses standard excavator for greater versatility
- Maintenance Cost: Lower wear part costs in abrasive conditions
- Maneuverability: Greater positioning flexibility in confined areas
Maintenance and Longevity
The durability and serviceability of KEMROC equipment contribute significantly to its value proposition:
EK Series Pick Life and Replacement
- Average Life: 8-24 hours of cutting time depending on rock abrasiveness
- Replacement Process: Simple procedure requiring basic tools
- Cost Efficiency: Individual pick replacement rather than complete tool changes
- Optimization: Rotation patterns to maximize utilization of all picks
- Availability: Comprehensive inventory maintained by Rock Hard Solutions
Routine Maintenance
- Daily Inspection: Visual check of picks, chain tension, and hydraulic components
- Lubrication: Regular greasing of specified points
- Hydraulic System: Standard filter and fluid maintenance per carrier requirements
- Chain Tension: Periodic inspection of tension springs required.
- Structural Inspection: Regular checks for wear or damage to frame components
EK Series Long-Term Durability
KEMROC chain cutters are engineered for extended service life:
- Frame Design: Heavy-duty construction with reinforced wear points
- Component Quality: Premium bearings and seals for harsh environments
- Rebuild Options: Major components can be rebuilt rather than replaced
- Upgrade Paths: Compatibility with newer technology as it becomes available
- Resale Value: Strong market for used equipment due to durability reputation
“The engineering behind these machines is impressive,” notes Scott Thornberry. “We’ve seen units with thousands of hours still performing at near-new levels with proper maintenance.”
Customization and Support
Rock Hard Solutions provides comprehensive support to ensure optimal performance:
- Application Engineering: Assistance matching the right model to specific projects
- Custom Configurations: Pick patterns optimized for particular rock types
- Operator Training: On-site instruction for efficient operation
- Technical Support: Rapid response troubleshooting and maintenance guidance
- Parts Availability: Extensive inventory of replacement components
This combination of advanced technical specifications and comprehensive support ensures that contractors can maximize the potential of KEMROC chain cutters across a wide range of challenging applications.
Conclusion: The Future of Rock Excavation
As we’ve explored throughout this article, the choice between traditional blasting and KEMROC chain cutters represents more than just a decision about equipment—it’s a fundamental shift in how contractors approach rock excavation challenges.
Transforming the Industry
The evidence is clear: KEMROC chain cutters are revolutionizing rock excavation by addressing the core limitations of traditional blasting methods:
Safety Transformation

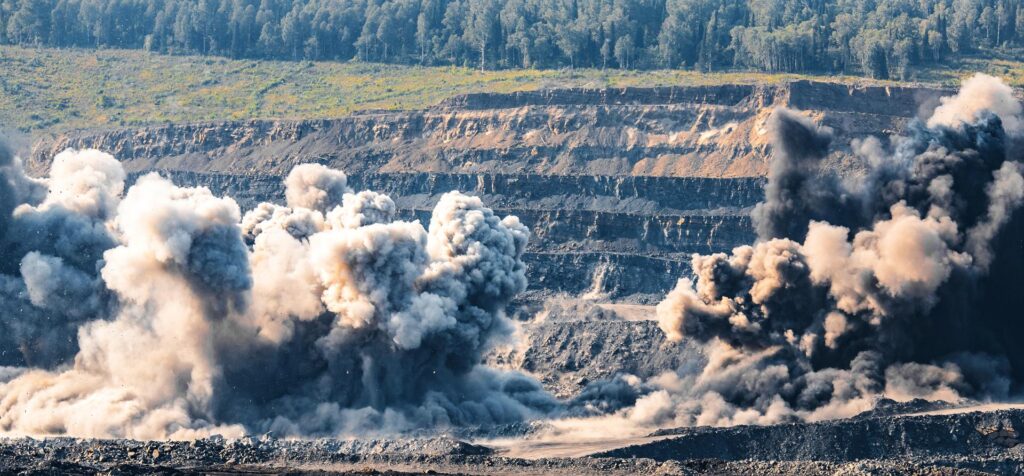

By eliminating explosives entirely, chain cutters fundamentally change the safety profile of rock excavation projects. The reduction in flyrock risk, vibration damage, and regulatory complexity creates a safer environment for workers, surrounding properties, and the public.
Economic Revolution
The comprehensive cost advantages—from direct operational savings to material reuse benefits—make chain cutters not just an alternative to blasting but often the more economical choice when all factors are considered. As Scott Thornberry notes, “The EKT 220 has reduced the unit cost of mechanical rock removal to a point where it is now competitive with blasting.”
Precision Evolution
The surgical precision of chain cutters opens new possibilities for projects where exact dimensions and clean cuts are critical. This precision translates directly to quality improvements, reduced material waste, and enhanced structural integrity.
Environmental Advancement
Lower dust levels, reduced vibration, minimal noise pollution, and the ability to reuse excavated material all contribute to a significantly reduced environmental footprint—an increasingly important consideration in today’s regulatory environment.
Industry Trends and Future Outlook
The construction industry is increasingly moving toward mechanical cutting solutions for several reasons:
Regulatory Pressure
Blasting regulations continue to tighten across the United States, with many urban and suburban areas prohibiting explosives entirely. This regulatory trend is expected to accelerate, further limiting where and when blasting can be utilized.
Technology Improvements
Ongoing advancements in cutting technology, materials science, and hydraulic systems continue to expand the capabilities and efficiency of mechanical cutting solutions like KEMROC chain cutters.
Environmental Considerations
Growing emphasis on sustainable construction practices favors methods that reduce waste, limit environmental disruption, and minimize resource consumption—all areas where chain cutters excel compared to blasting.
Labor Market Changes
The declining availability of certified blasters and specialized blasting crews makes mechanical cutting solutions more attractive as they can be operated by standard excavator operators with minimal additional training.
Client Expectations
Project owners increasingly demand faster timelines, more precise results, and minimal disruption to surrounding areas—expectations that are difficult to meet with traditional blasting methods.
Making the Transition
For contractors considering the switch from traditional methods to KEMROC chain cutters, the path forward is clear:
- Assessment: Evaluate your current rock excavation methods, costs, and challenges.
- Consultation: Connect with Rock Hard Solutions for a personalized analysis of how chain cutters could improve your specific operations.
- Demonstration: See KEMROC equipment in action through on-site or facility demonstrations.
- Implementation: Start with a single project to experience the benefits firsthand.
- Expansion: Gradually incorporate chain cutters across more of your rock excavation work as you verify the advantages.
The contractors featured in our case studies all followed similar paths, starting with a specific project challenge that led to broader adoption as the benefits became clear.
The Bottom Line
The question is no longer whether mechanical cutting can compete with blasting—the evidence from contractors across the country demonstrates that KEMROC chain cutters often deliver superior results across multiple dimensions:
- Safer operations with reduced liability exposure
- Competitive or lower total project costs
- Superior precision and quality outcomes
- Faster project completion with fewer delays
- Expanded project opportunities in restricted areas
- Improved environmental performance
- Simplified regulatory compliance
As Jerry Hack of Abel Construction summarizes: “The Kemroc EKT-220 drum cutter has produced precision cuts with high quality material that is usable, and a major time savings compared to blasting.”
In an industry where margins are tight and competition is fierce, these advantages represent a significant opportunity for forward-thinking contractors to differentiate themselves and improve their bottom line.
Your Next Steps
Ready to explore how KEMROC chain cutters can transform your approach to rock excavation? Rock Hard Solutions offers several ways to take the next step:
Consultation Services
Our team of experts can provide a personalized assessment of your specific needs and challenges:
- Review of your current rock excavation methods and costs
- Analysis of potential savings and improvements
- Equipment recommendations based on your existing fleet
- Project-specific application guidance
- ROI calculations for equipment investment
Demonstration Options
See KEMROC chain cutters in action:
- On-site demonstrations at your project location
- Facility demonstrations at our equipment yard
- Video case studies of similar applications
- Connect with existing users in your region
- Virtual consultation with technical specialists
Support Resources
Rock Hard Solutions provides comprehensive support to ensure your success:
- Operator training programs
- Technical documentation and guides
- Maintenance support and spare parts
- Application engineering assistance
- Ongoing consultation for challenging projects
Get Started Today
Don’t let traditional blasting methods limit your project capabilities or profitability. Contact Rock Hard Solutions to discover how KEMROC chain cutters can revolutionize your approach to rock excavation:
- Phone: (502) 305-8480
- Email: scott@rockhardsolutions.com
- Website: Visit rockhardsolutions.com to request information
- In-Person: Schedule a meeting at our facility in Louisville, Kentucky
As Scott Thornberry often says, “No stone left uncovered”—and with KEMROC chain cutters, that promise extends to new possibilities for safety, efficiency, precision, and profitability in your rock excavation projects.
